ILLIG RDK54

Age 1999

Consisting of:

Unwind Stand

Preheater ILLIG VWH72

Indramat Servomotor Indexing

Print Registering for Preprinted Film

Max. Film width 610 mm

Max. Thickness range 0.18 to 2.5 mm

Hardened Transport Rails

Double Heating, Heating Load 41.0 kW

Heaters move forwards automatically with pneumatic control

Sheet Sag Control

Form Area 550 x 400 mm

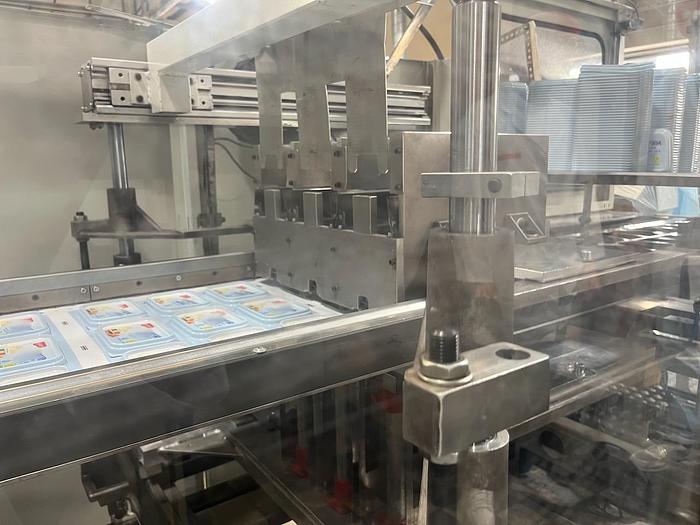

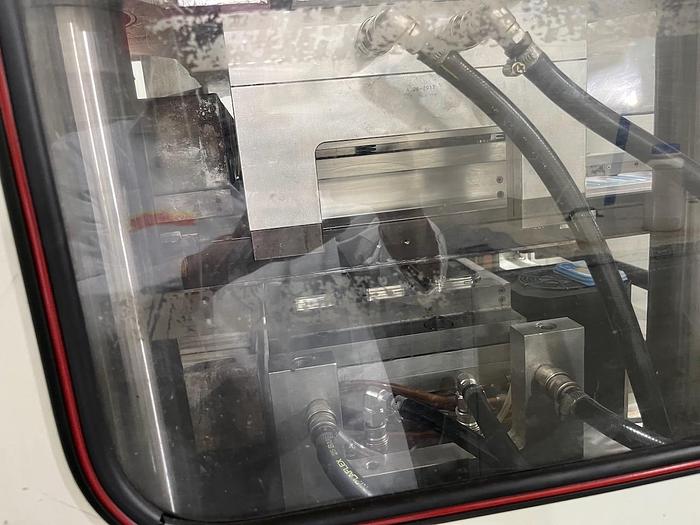

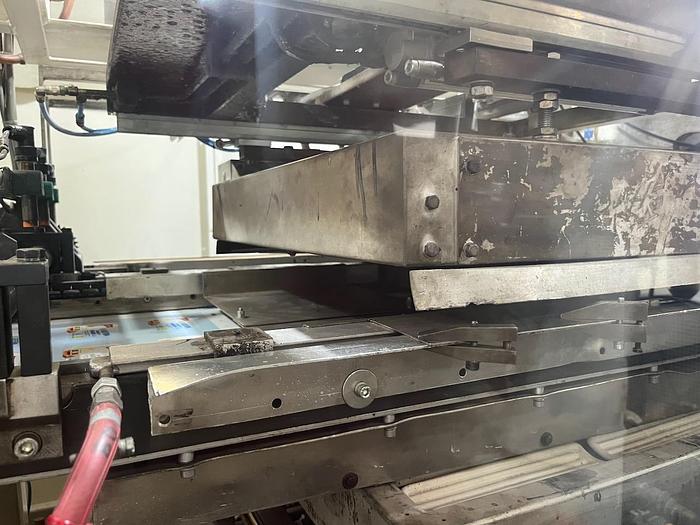

Forming & Punching in Mold with integrated Steel Rule Die

Positive Draw 20 mm, Negative Draw 20 to 40 mm

Trimming Force 50kN.

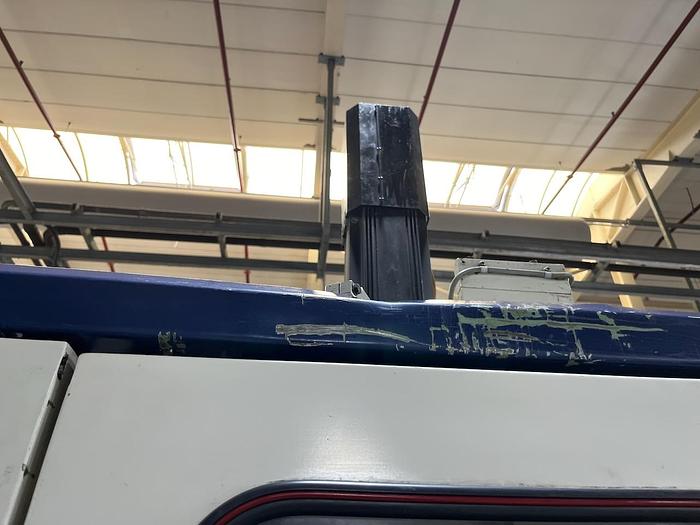

Top and Lower Platens Moved by separate Indramat Servomotors

Heavy duty Toggles on both upper & Lower Platen

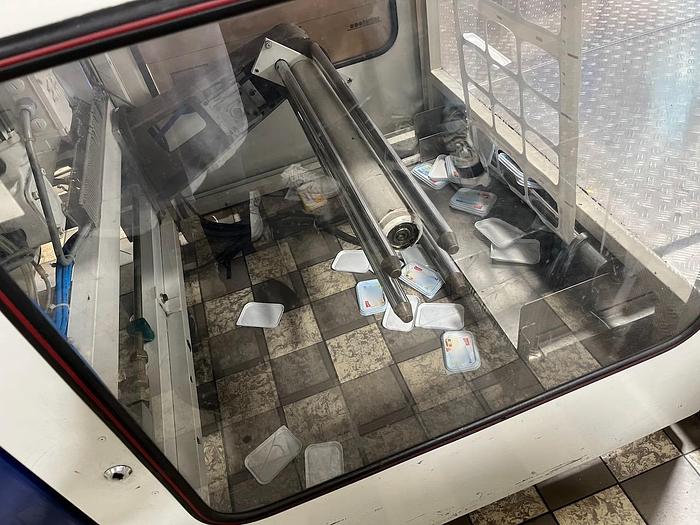

Stacking/ Counting Station

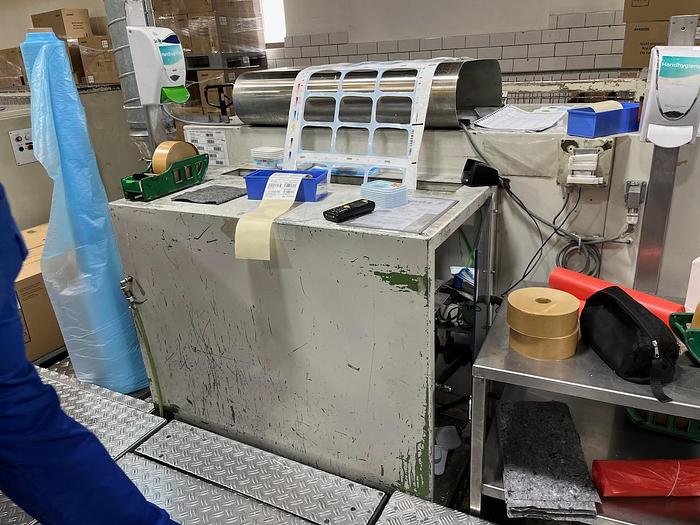

Waste Material Winder

Inline ILLIG RS75b Grinder with Blower

Suitable for PS, OPS, PP, PE, PVC etc.

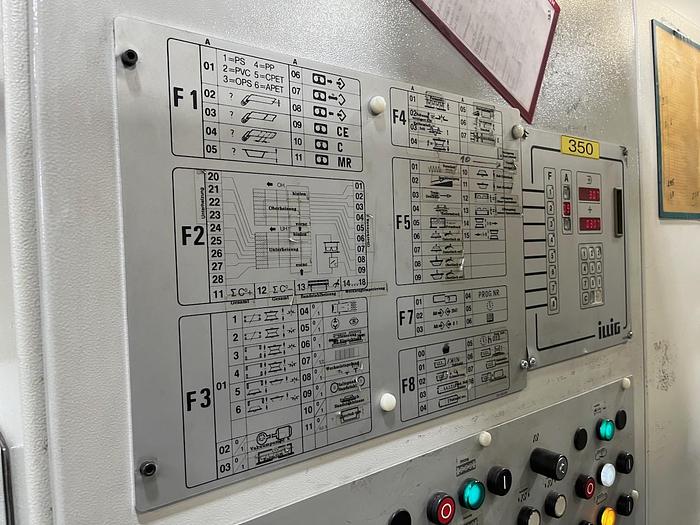

PLC: Siemens S5
