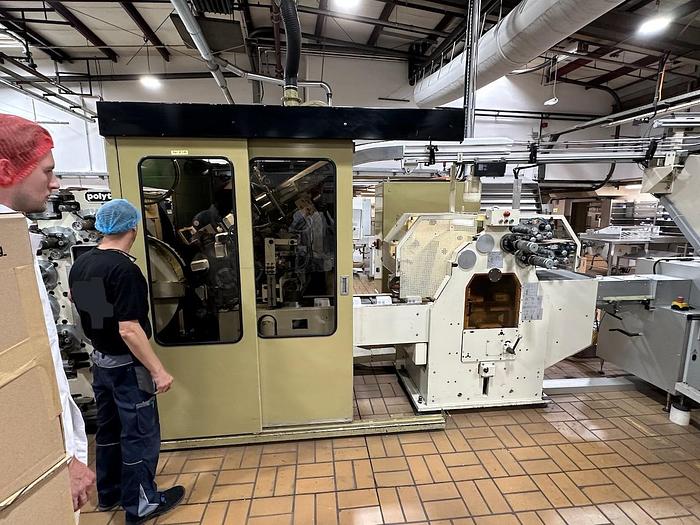

1995 Polytype BDM301R6

Used POLYTYPE BDM301R6, 6-Color Rectangular/ Oval Container Printer, age 1995 with:

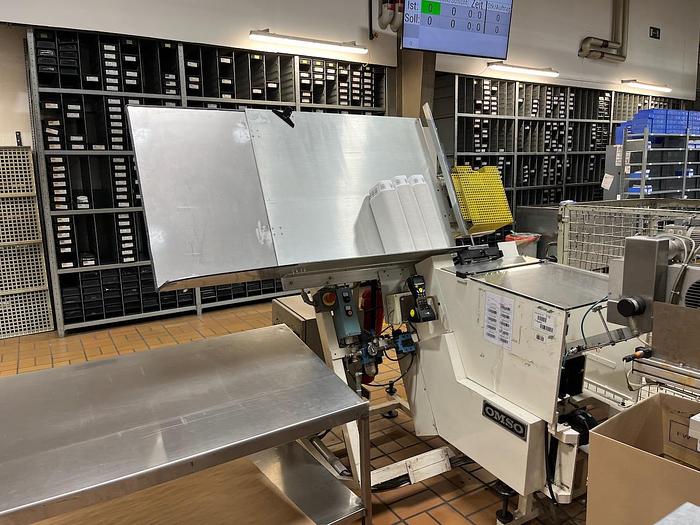

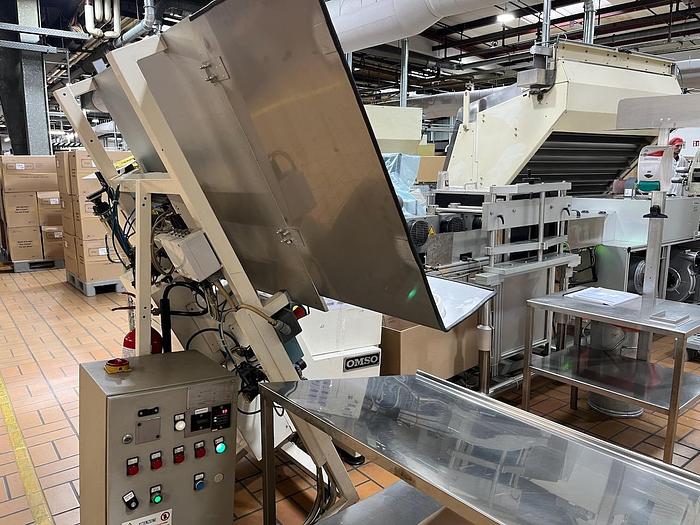

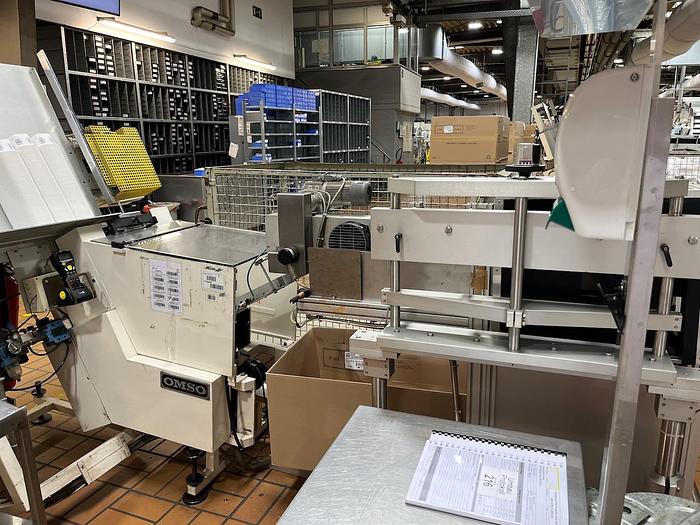

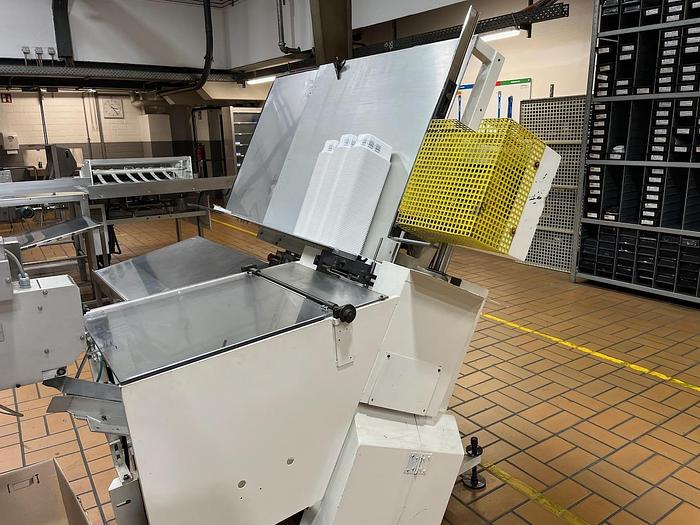

Automatic Elevator Tray-feeder

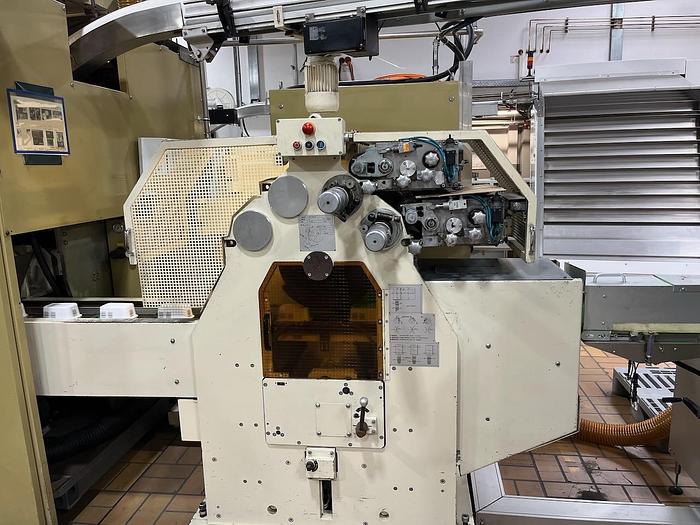

Auto-cross conveyor feeder to main Print Unit

Universal screw Denester

ARCOTEC CG30-2 Corona Pretreatment System

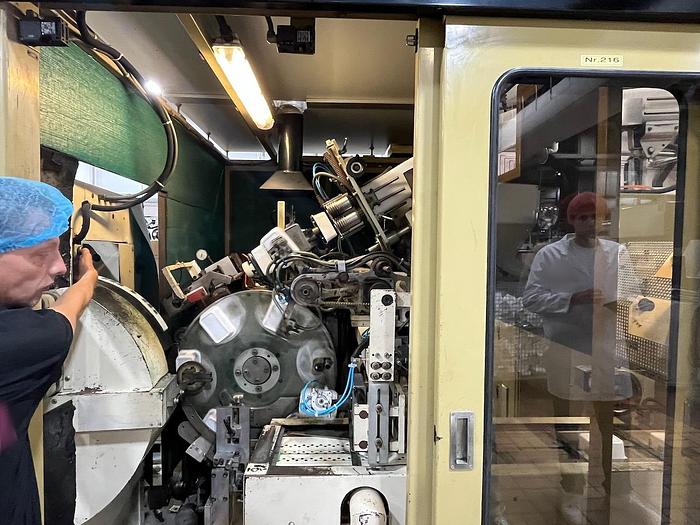

8-mandrel Indexing Turret, with Mandrel Holders for Tubs

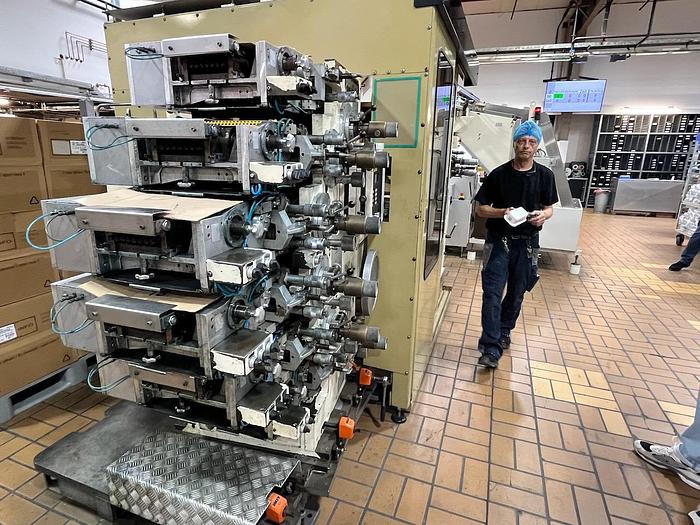

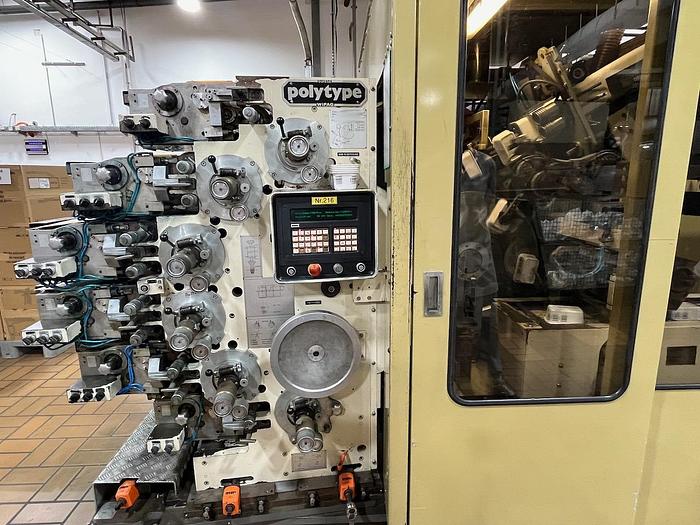

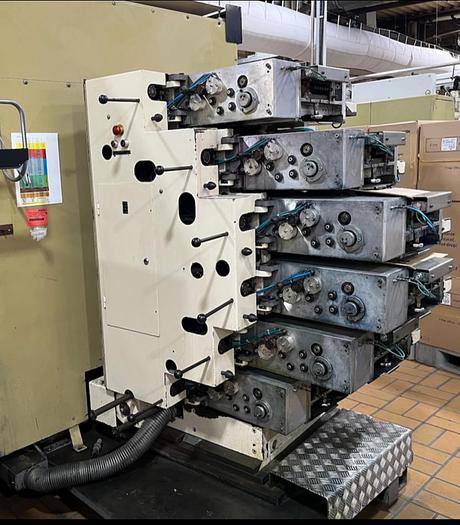

6 x individually hinged dry-offset Print Heads.

Each Print Head consisting of Print cylinder, radial and axial Print adjustment with micro-register during operation of the Printer

2 x Form Rubber Rollers dia. 71 and 100 mm

2 x Oscillating rollers, 2 x Idler Rollers

1 x Ink Transfer roller (Ductor Roller)

1 x Ink Fountain

Ink Washing System on Print Heads

Positive Suction-cup pick & place and Take-off

2 x Color Base Printer

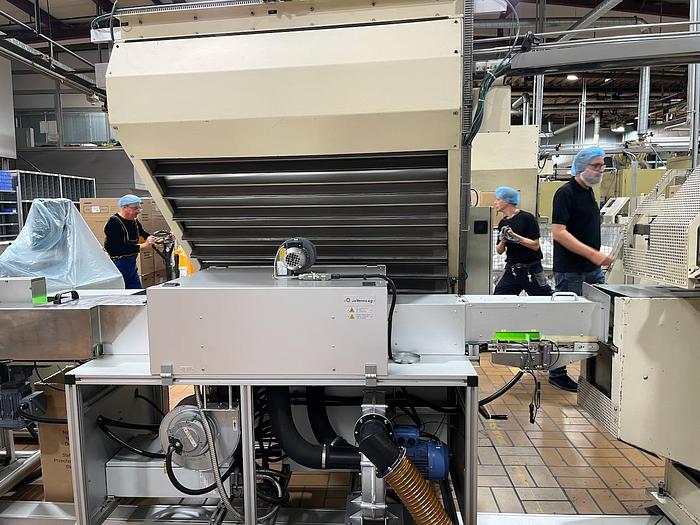

6 kW Jumbo UVITERNO UV Curing Tunnel

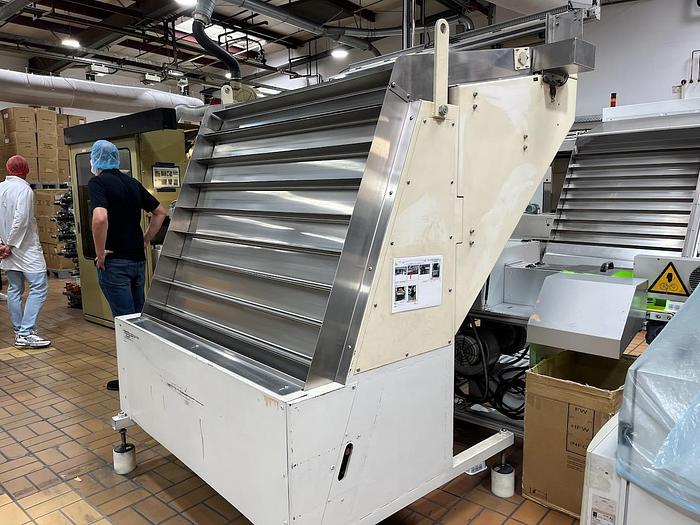

Counter/ Stacker station

Max. Container dimension 135 x 180 mm

Max. Printing Length 417 mm

Max. Height of Containers 125 mm

Min. height of Containers 30 mm

Max. speed 9000 containers/ hr with rectangular Containers, depending on size & shape

Siemens SIMATIC S5 PLC Controls
