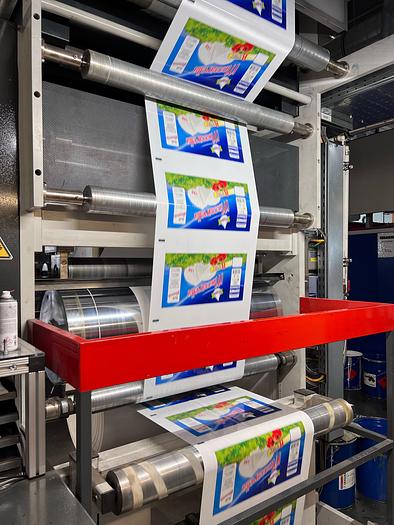

2014 KBA Flexotecnica EVO XDS 100

We are pleased to offer a Flexotecnica 8-color C.I. flexographic printing press, which is in excellent condition and fully equipped. Available as of June 2025.

Key Features of the Machine:

• Year of manufacture: 2014
• 8 colors
• Fully equipped with Rossini sleeves for both 1.14 mm and 2.54 mm
• 19 anilox rollers from APEX, covering all production requirements
• Desba Tec recycling unit (vacuum distillation) for processing waste material from the automatic cleaning system (Speddy Clean) (optional)
• AFS Corona pre-treatment unit

Technical Specifications:

• Film width: 1,050 mm
• Printing width: 1,000 mm
• Printing repeat: 280 – 800 mm
• Max printing speed: 350 meters per minute
• Mono unwind station
• Dual rewind station

• Number of colours: 8
• Printing possibilities: 8+0
• Printing width:     1000mm – (39.37”)
• Web width:        1050mm – (41.34”)
• Printing repeat:     280 – 800 mm (11.02” – 31.49”)
• Printing Speed:     up to 350 m.p.m. * (1.148 fpm)

With Print repeat 280 – 350 mm max. printing

                   speed: 250 m/min (820 fpm)

• Plate thickness:    1.14 mm (0,045”) plus adhesive or other to be advised
• Inks:  solvent based
• Materials to be printed: OPP 20 – 40 m

HDPE 30 – 150 my

LDPE 30 – 200 my

  CPP 30 – 90 my

• Single-phase voltage: 220 VAC – 110 VAC (USA)

This line can be inspected in production.
